BEE1678 EE16 Vertical Secondary Widened 5+2+3PIN Medium Power Transformer

BEE1678(EE16 Vertical Secondary Widened 5+2+3PIN) Power Distribution Transformer Medium Power Transformer

A power transformer is a static electrical device. It utilizes the principle of electromagnetic induction to convert alternating current energy of one voltage and current into alternating current energy of another or several voltages and currents of the same frequency. It is mainly composed of an iron core, windings, oil tank, cooling device, insulating bushing, tap changer and other parts, and plays a key role in increasing or decreasing voltage, transmitting and distributing electrical energy in the power system.
As one of the core devices in the power system, the reliability of power transformers directly affects the stable operation of the entire power system. Therefore, extremely high requirements are placed on materials, processes, etc. during their design and manufacturing.

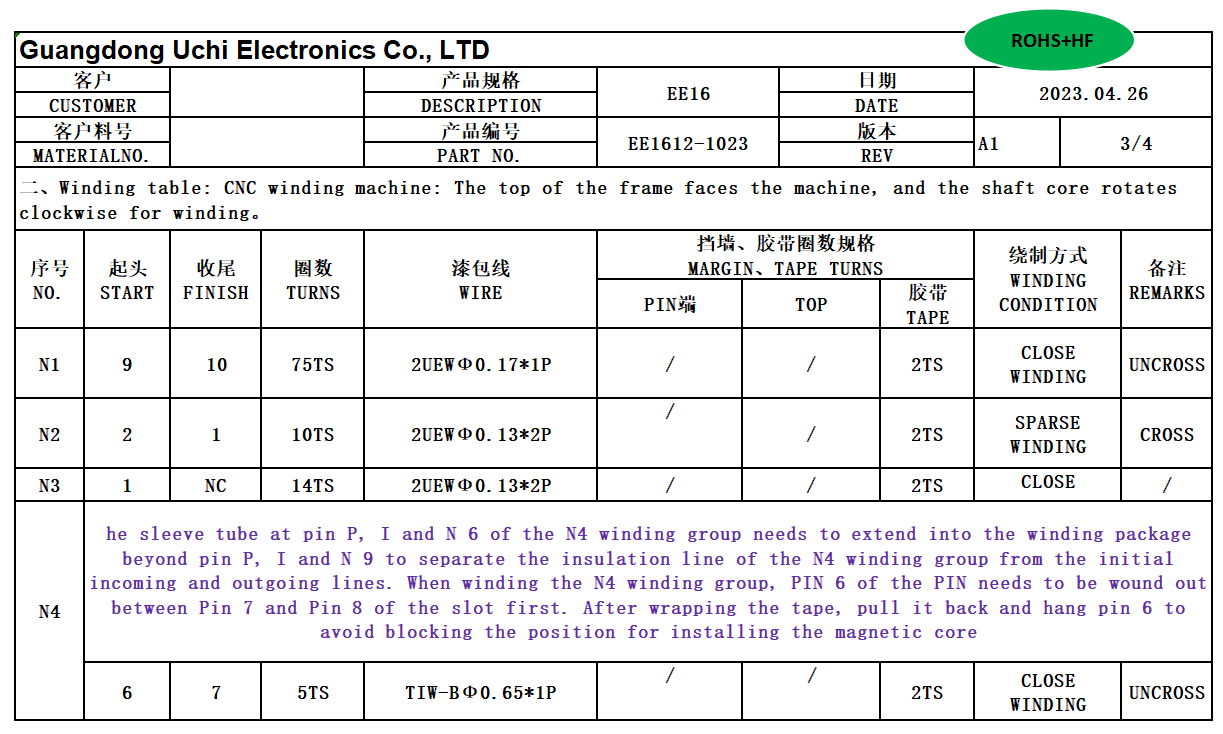

DETAILED INTRODUCTION

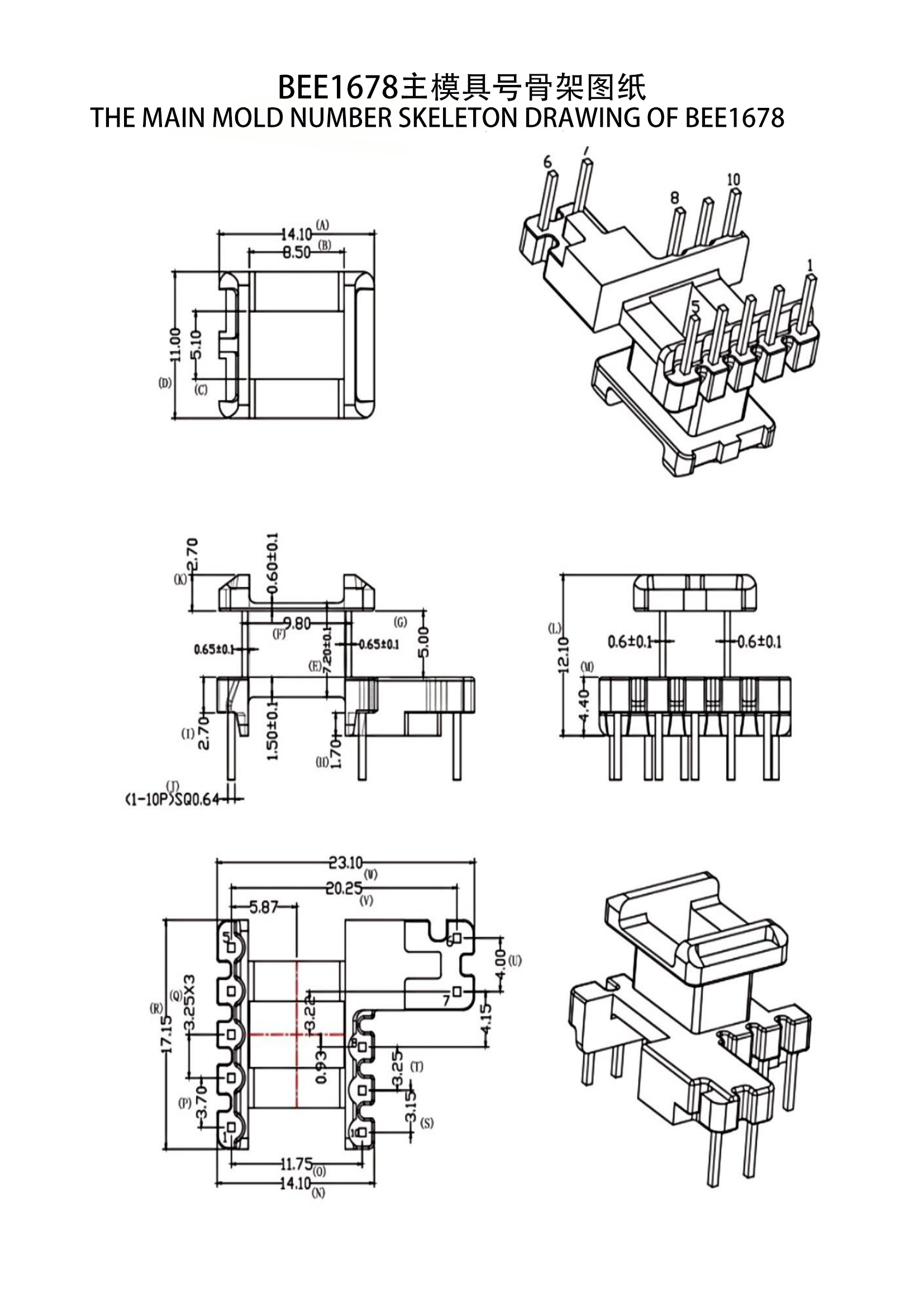

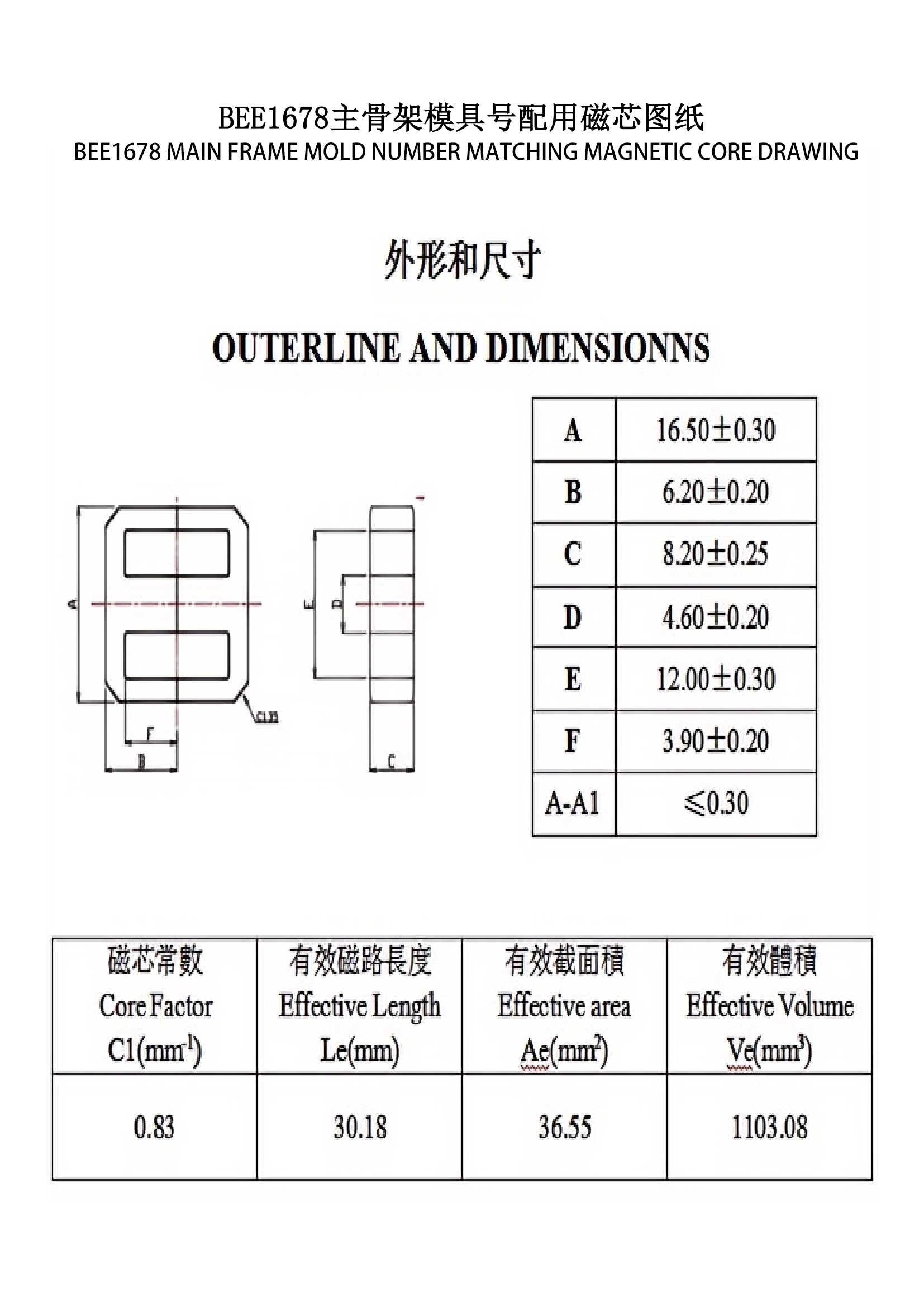

CASE DIAGRAM

Distribution Medium Power Transformer

Medium Power Distribution Transformer

BEE1678 EE16 Vertical Secondary Widened 5+2+3PIN Medium Power Transformer Images
